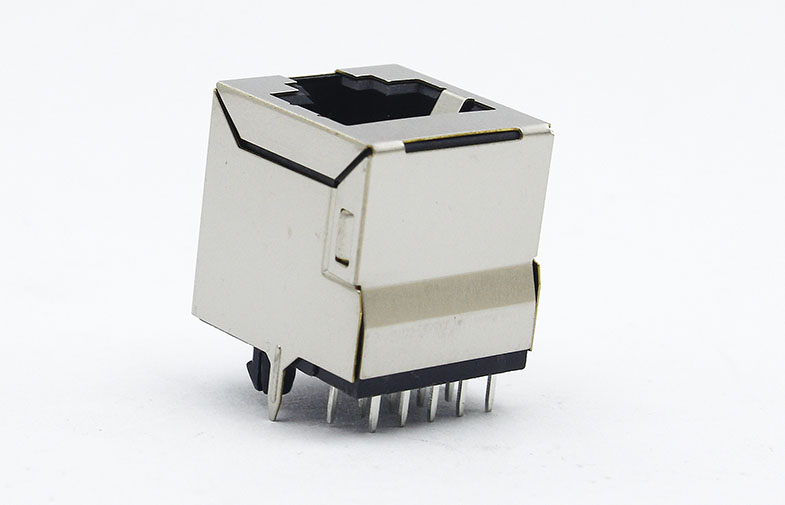

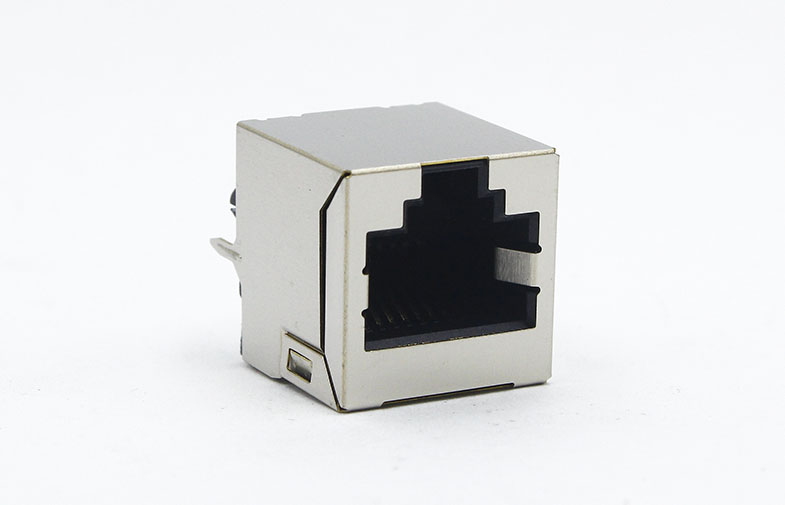

rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41

TM52D011EXX41 is Top Entry 10 Pin rj45 Connector with shield Top Entry Thru-Hole .with Locating Pegs,spacing:11.43 mm.Length X Width X Height:15.86 X 17.16 X 16.59 mm.

Alias:RJ48/RJ50 Connector

Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 16.59 mm
Connector Width: 15.86 mm
Connector Height: 16.38 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
180°Orientation
Without LED, let know the connection status
We Support Custom service as required

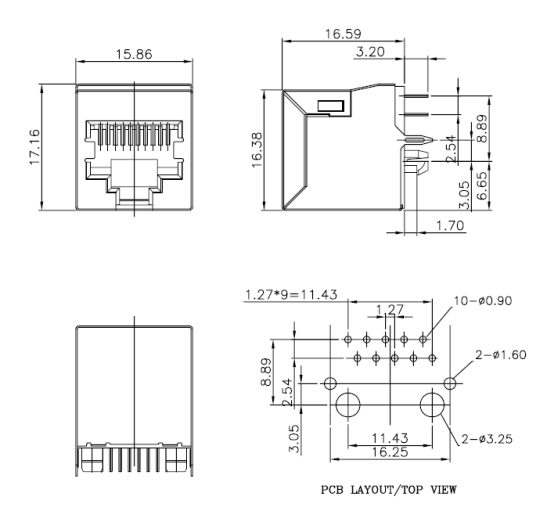

RJ45 Female Connector (TM52D011EXX41) Mechnical Drawing:
