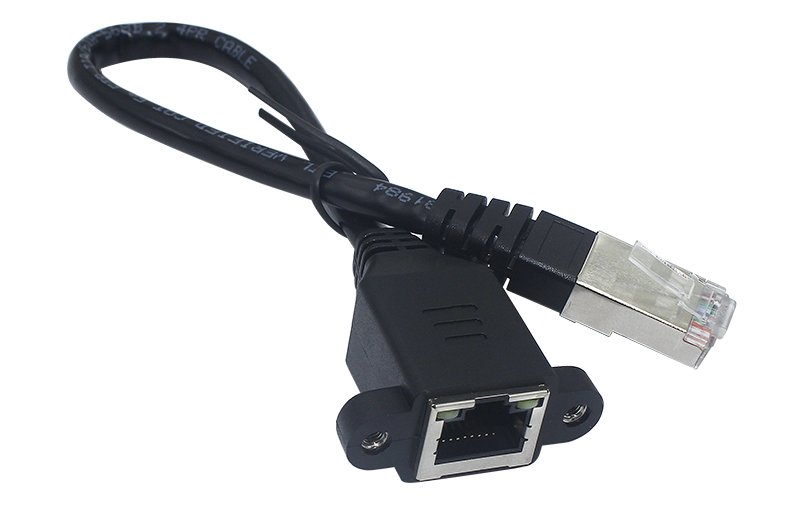

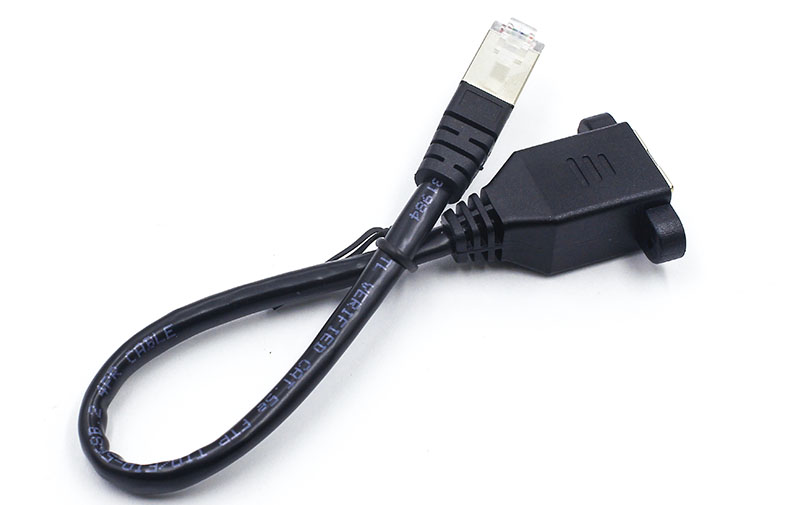

Pure Copper RJ45 Extension Cable with Ear Fixed with Screw Hole RJ45 Network male to female Extension Cable TMCABLE060123

RJ45 cable for Ethernet connection
The Ethernet cable has RJ45 connectors on both ends. For this reason, Ethernet cables are sometimes designated as RJ45 cables. These cables are commonly used to connect computers to Ethernet networks. An RJ45 connector is similar to a six-pin RJ11 connector, but the 45 is slightly wider. Since each connector has eight pins, an RJ45 Ethernet cable will have eight wires of different colors. RJ45 cables can be routed according to two different schemes, T-568 A or B, depending on the devices to be connected in the network. Crossover cables have a different wiring scheme at each end to support computer-to-computer connections.

Materials:

CONNECTOR P1(RJ45 JACK):

Housing:PBT,BLACK,UL94V-0 ( RoHS )

Holder:LCP,BLACK,UL94V-0 ( RoHS )

Contact material:OD=0.2*0.35mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )

Gold plating:Fu”(Optional)

Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

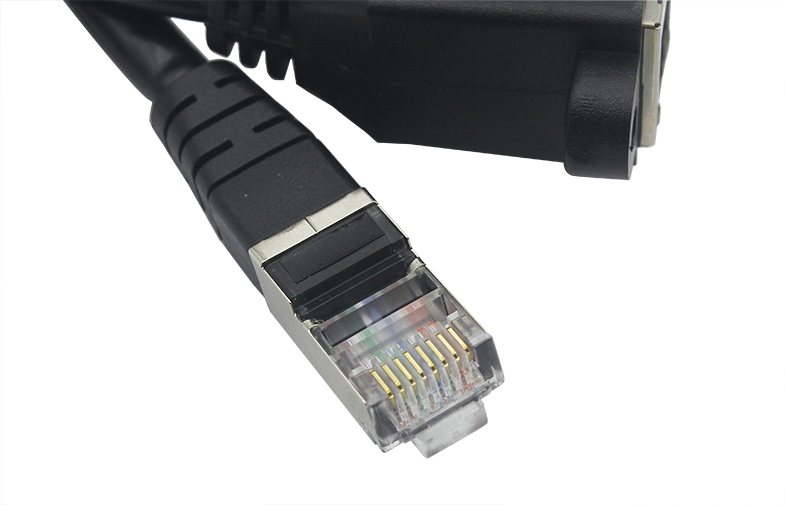

CONNECTOR P2(US PLUG):

Housing:PC,UL94V-0 ( RoHS )

Contact material:T=0.3mm Copper alloy nickel plating, contact area gold plating( RoHS )

Gold plating:Fu”(Optional)

Shielding Shell:Copper alloy with Nickel Plating over all

CABLE: FTP 24AWG*4P(7/0.20BC)+AEB OD5.8mm BLACK PVC( RoHS )

MOLDING: PVC Black UL94V-0(RoHS)

Shielding: With

All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ45 CABLE

One plug to one jack Cable

CABLE Length: 300 mm

RJ45 Connector Lock hole spacing: 28.27 mm

RJ45 Connector Lock hole size: M3

8P8C ( 8 positions 8 contacts )

180°Orientation

Without LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required

RJ45 Connector Cable(TMCABLE060123) Attributes:

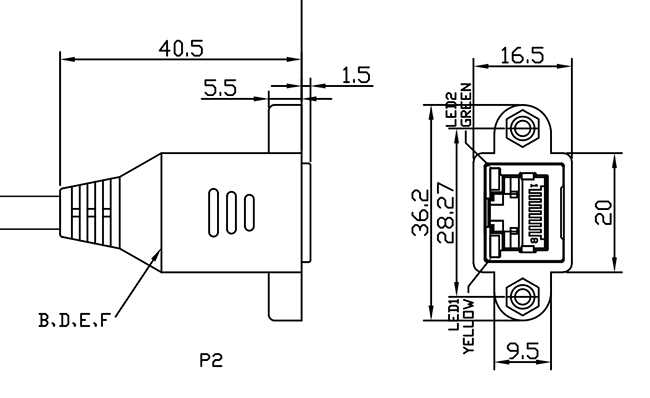

RJ45 Connector Cable ( TMCABLE060123) Mechnical Drawing:
